SV7000 SERIES Smart camera

Get a Quote

Overview
Details
Specifications

Performance Features

Quad-Core High-Performance Processor

Equipped with an embedded AI learning unit and a high-resolution, high-frame-rate global-shutter image sensor.

Simple and Reliable Algorithms

It incorporates a built-in high-resolution global-shutter image sensor and advanced algorithms. Optimal inspection algorithms can be conﬁgured by modifying only a small number of parameters, enabling easy operation even for novice users.

Rich and lntuitive Visualization lnterface

All conﬁguration statuses are clearly presented. Operators can quickly locate issues and troubleshoot faults. Operational statistical results can also be easily collected for further analysis.

lntegrated Camera-Controller Desig

Powered by world-class built-in vision algorithms, it removes the requirement for an extra vision controller to realize rapid positioning and stable inspection.

Specififications

Model	lmage Sensor	Color	Maximum lmage Resolution	lmage Sensor
SV7020CA	1/2.528", CMOS Color, Global-Shutter	color	1632(H) x 1264(V)	3.45 μm x 3.45 μm Square Pixels
SV7050CC /CA	2/3", CMOS Color, Global-Shutter	color	2432(H) x 2048(V)	3.4 μm x 3.4 μm Square Pixels
SV7050MC/MA	2/3", CMOS Monochrome, Global-Shutter	mono	2432(H) x 2048(V)	3.4 μm x 3.4 μm Square Pixels
SV7120MC	1", CMOS Monochrome, Global Exposure	mono	4096(H) x 3472(V)	3.4 μm x 3.4 μm Square Pixels
SV7200MC	1", CMOS Monochrome, Rolling-Shutter	mono	6016(H) x 4096(V)	2.4 μm x 2.4 μm Square Pixels

Type of camera lens	Auto focus / C-mount lens
Tool Algorithms	Position Correction, Blob Counting, Edge Counting, Circle Detection, Color Area, Brightness lnspection, Contour Presence/Absence, Misalignment Prevention, Width Measurement, Optical Character Recognition (OCR), Barcode Recognition, etc.
lndicator LEDs	Ethernet connection indicator LED; Pass/Fail LED; lnput LED (user-conﬁgurable); Power indicator LED
Memory	4/8GB
Communication Protocols	RS232, built-in Ethernet port (supports EtherNet/lP, PROFlNET, Modbus/MC, TCP/lP raw-socket communication)
External lnputs	2-channel optically isolated inputs, compatible with NPN / PNP relays
External Outputs	3-channel optically isolated outputs
Power Supply Voltage	24V DC+/-10%

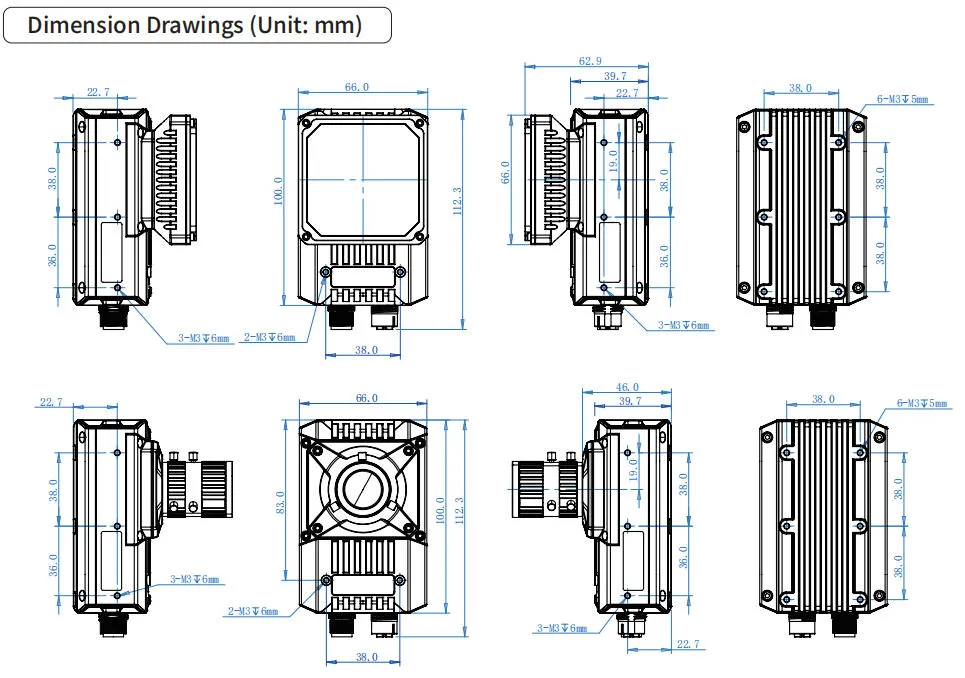

Dimensions (bare unit)	112.3大46.0大66.0mm
Operating Temperature	0℃~40℃
lngress Protection Rating	lP65
